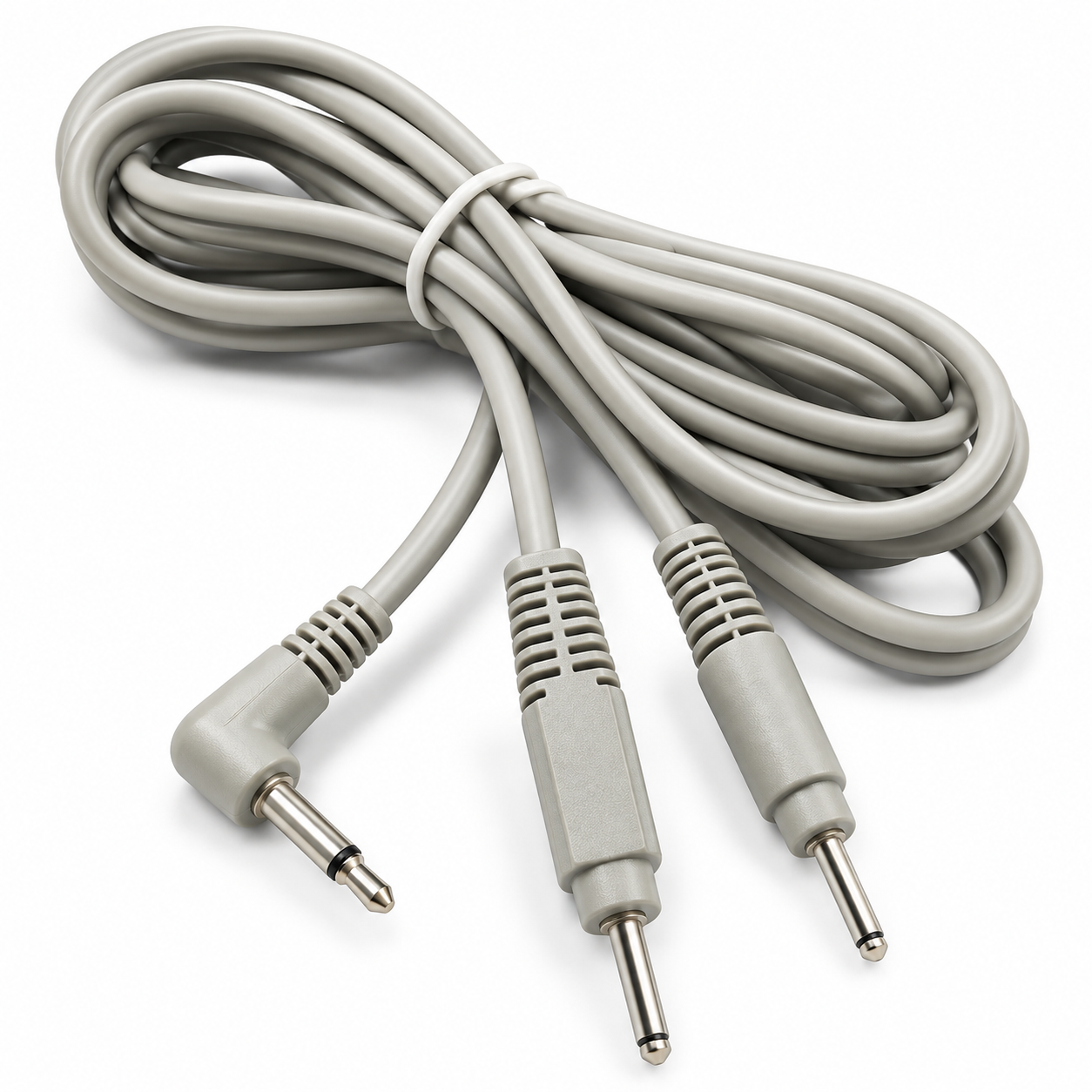

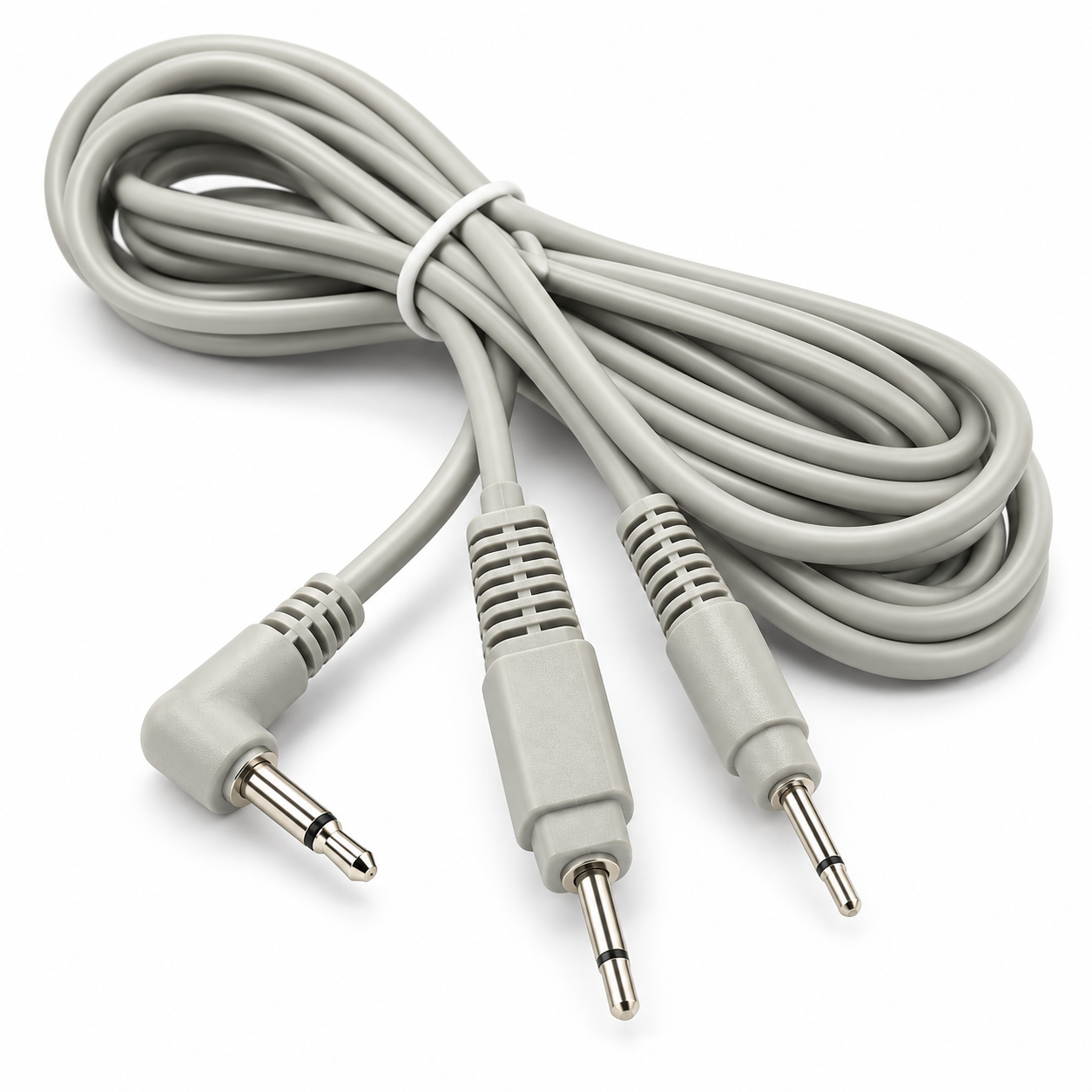

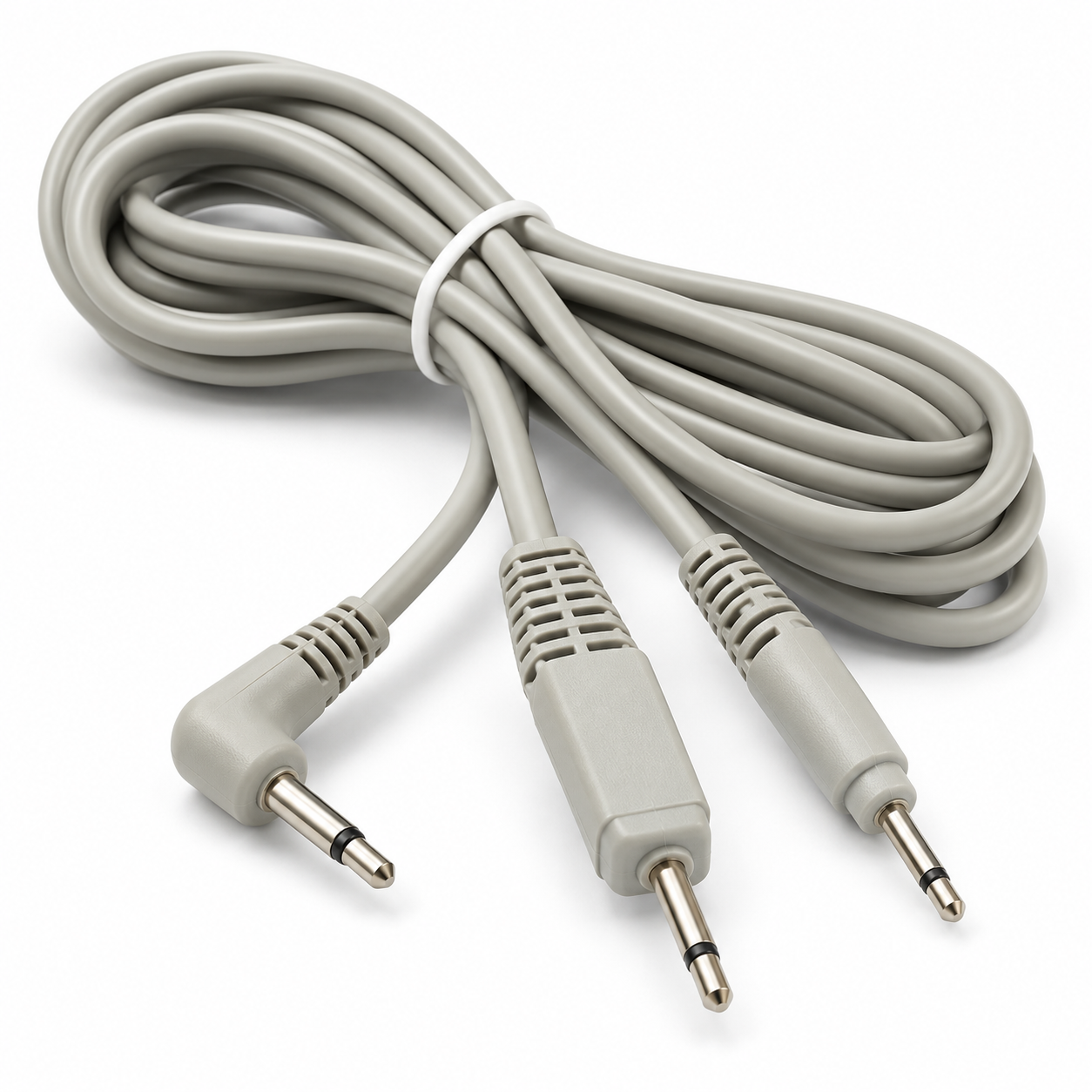

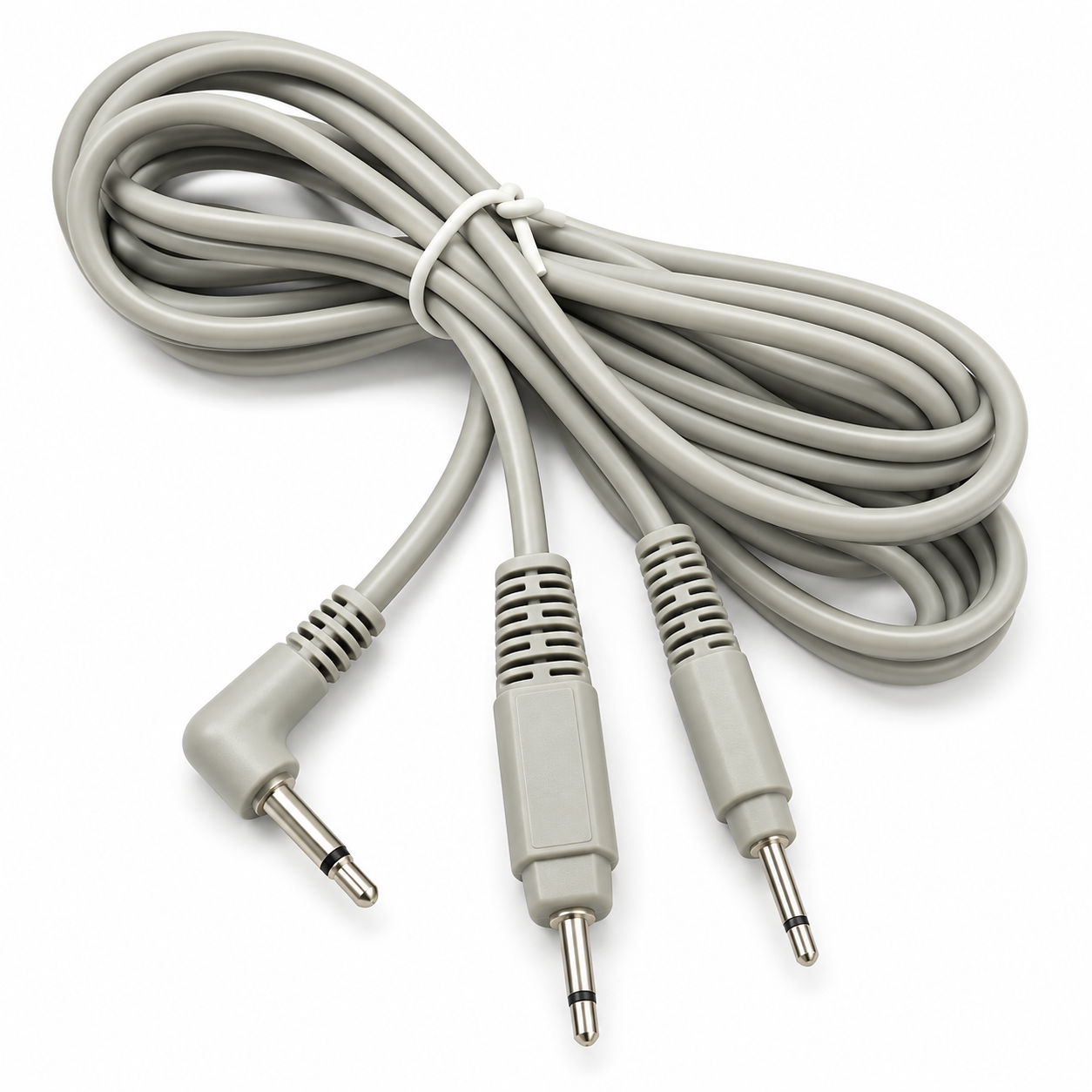

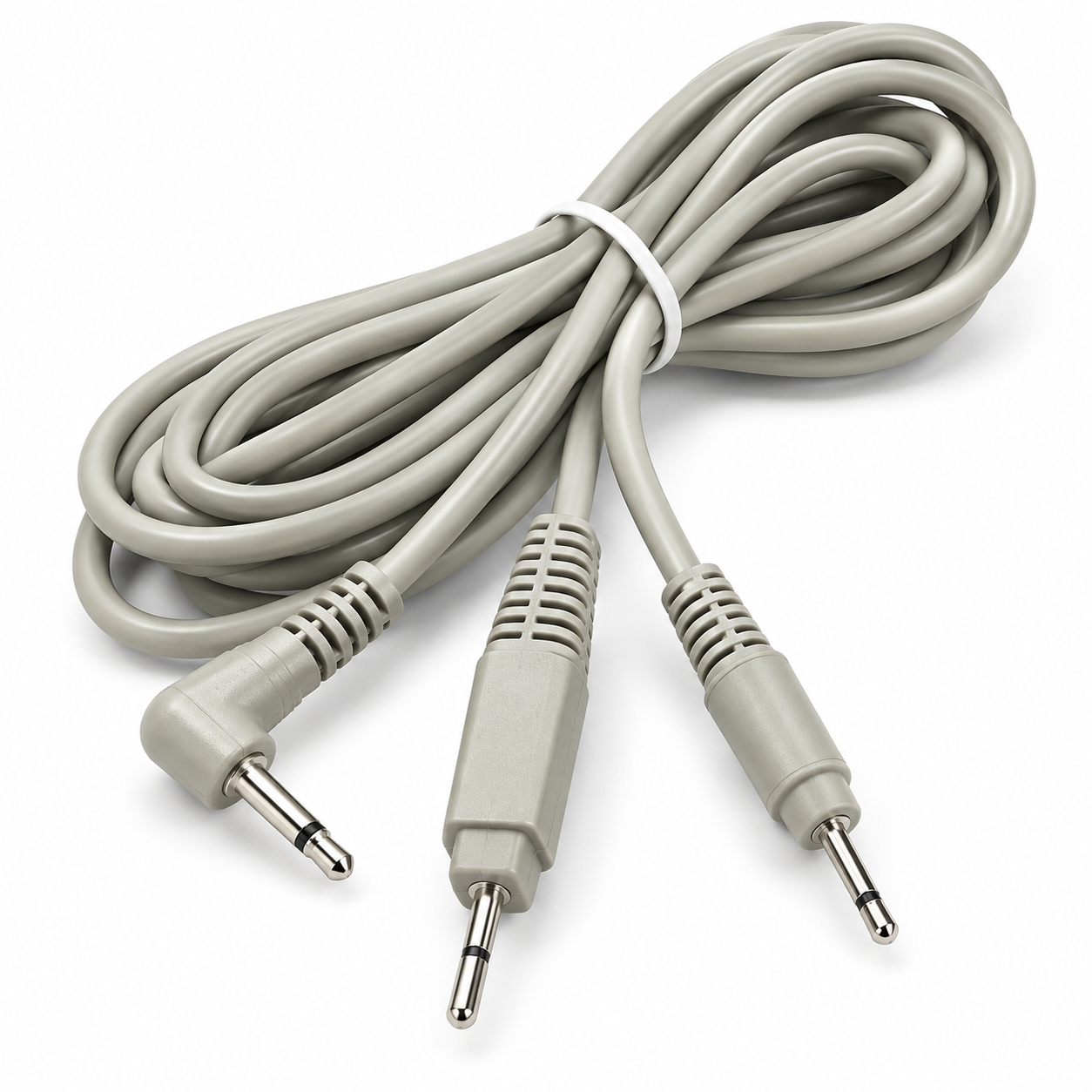

1.5m 3.5mm DC to 2.0mm Pin Electrode Lead Cable

JK-C003 combines a 3.5mm DC connector with 2.0mm pin connections in a 1.5m electrode lead cable. These two connector sizes help buyers compare the assembly against their equipment drawings or an existing replacement lead.

The 1.5m cable length and listed weight of 45g per piece provide additional reference points for product selection.

Confirm the complete DC connector dimensions and contact layout against the device socket. The nominal 3.5mm size alone does not establish compatibility.

At the electrode end, check the 2.0mm pin dimensions, mating depth and connection requirements. The cable wiring must also match the intended equipment.

For replacement sourcing, provide clear photos of both ends of the original cable. For equipment integration, include connector drawings and the required wiring arrangement.

What connectors does JK-C003 use?

The catalogue specifies a 3.5mm DC connector and 2.0mm pin connections.

How long is the cable?

The listed cable length is 1.5m.

Will it fit every device with a 3.5mm connector?

No. The complete mating dimensions, contact layout, wiring and device requirements must also match.

What information is needed for a quotation?

Provide the model number, required quantity and destination country. Include device socket details, electrode connector requirements and any available wiring drawings.

Request a Quote

Request a quotation for JK-C003 with your required quantity and connector specifications. If sourcing a replacement, include photos of the complete original cable and both connector ends.
